UG Zip Components V1.05

Overview

UGZipC is a free Unigraphics tool, which combines the benefits of UGPC and ZIP: It displays a list of components from a selected assembly or the work part assembly, from which the user can choose the files to zip.
No external programs are required. The created zip-archives are fully compatible with WinZip, PKZip or other zipping tools.

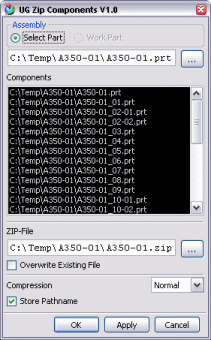

UG Zip Components - Hardcopy

Requirements for current distribution

WindowsNT/2000/XP
Unigraphics NX2 or NX3
UG-licenses: UG/Gateway, UG/Open API Execute

Restrictions

Does not work under iMAN or UG/Manager environment

Download

UGZipC V1.05 for WindowsNT/2000/XP for UG NX2 & NX3 (21 kB)
UGZipC V1.05 Source Code (286 kB) (for those who want to modify or port this tool)

Copyright and remarks

UGZipC uses zlib - a free compression library. Thanks to Jean-loup Gailly and Mark Adler, the authors of zlib (http://www.gzip.org/zlib).
Permission is granted to any individual/institution/corporate entity to use, copy, redistribute or modify UGZipC for any purpose as long as all of the original files are included, it is not sold for profit and this copyright notice is retained.

If you have done an interesting enhancement/port and would like to have it added to this distribution or want to report an error, please contact the author Heinrich Wiedemann at hwiedemann@w-eng.de.

Back to Home

Last updated: 24-Sep-2004
